Google BigQuery Integration

BigQuery is a serverless data warehouse providing scalable data analysis. Most business intelligence tools support data import from Google BigQuery giving access to the video analysis results in the familiar tools. IRIS+ Essential produces alarms, counting and object detection information which can be made available as database records in Google BigQuery.

Before you start

Please make sure that you have:

  • A registered Google account for Google Cloud.
  • A new Google Cloud Project is created by you or your system administrator, and your Google Account has access to it.

Setup Google BigQuery

Create Credentials

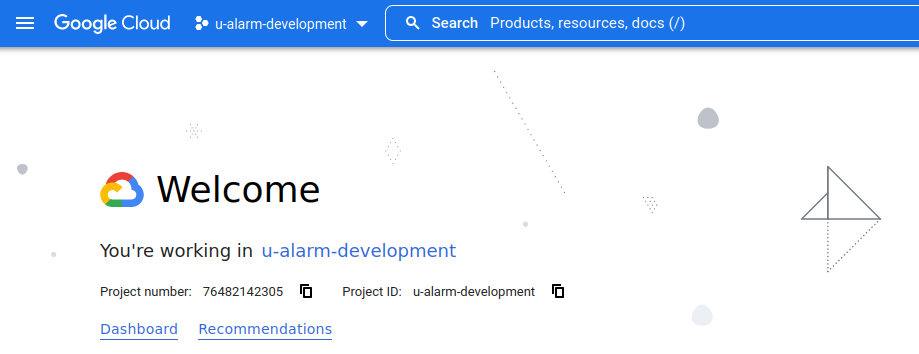

  1. Login to Google Cloud Console.

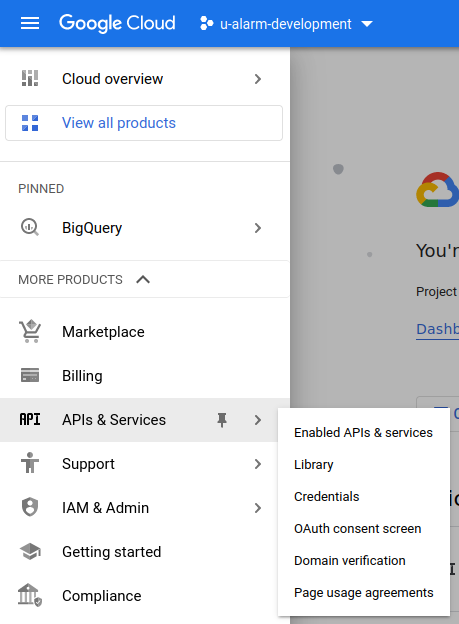

  1. Open the hamburger menu on the upper left corner of the screen click APIs & Services.

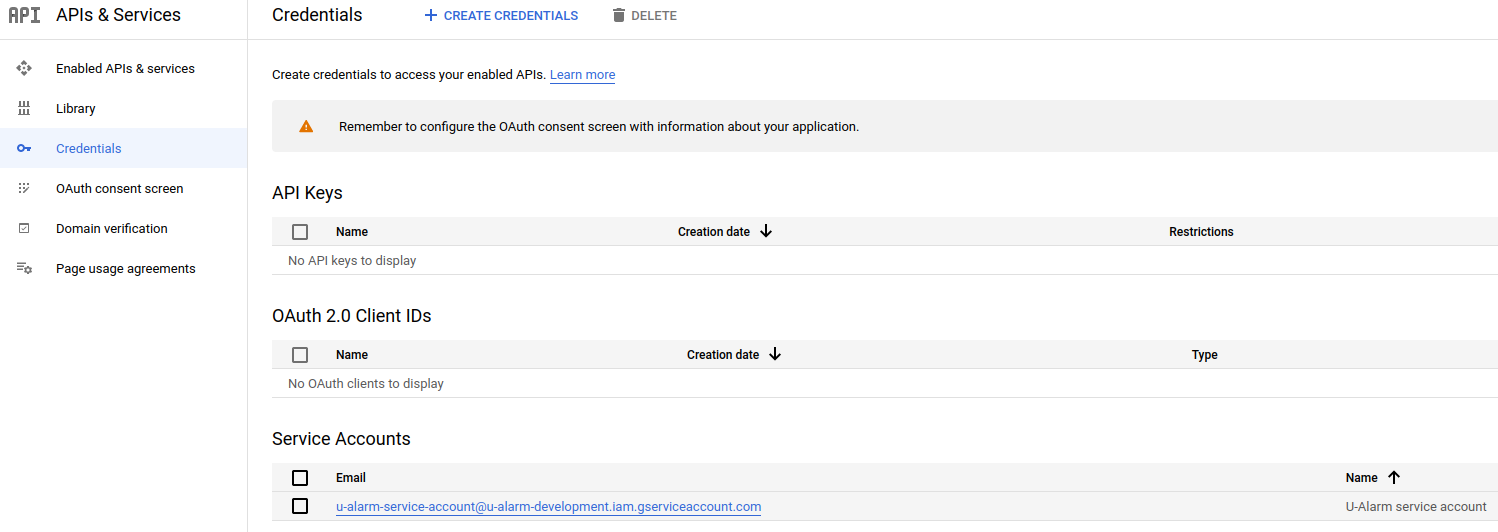

  1. Click Credentials.

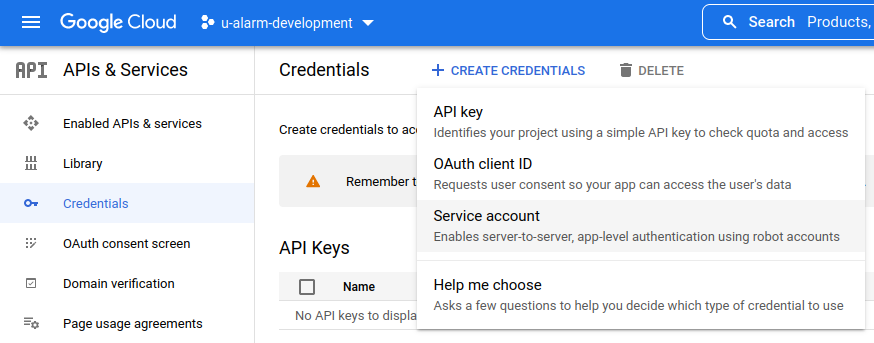

  2. Click + Create Credentials select Service Account

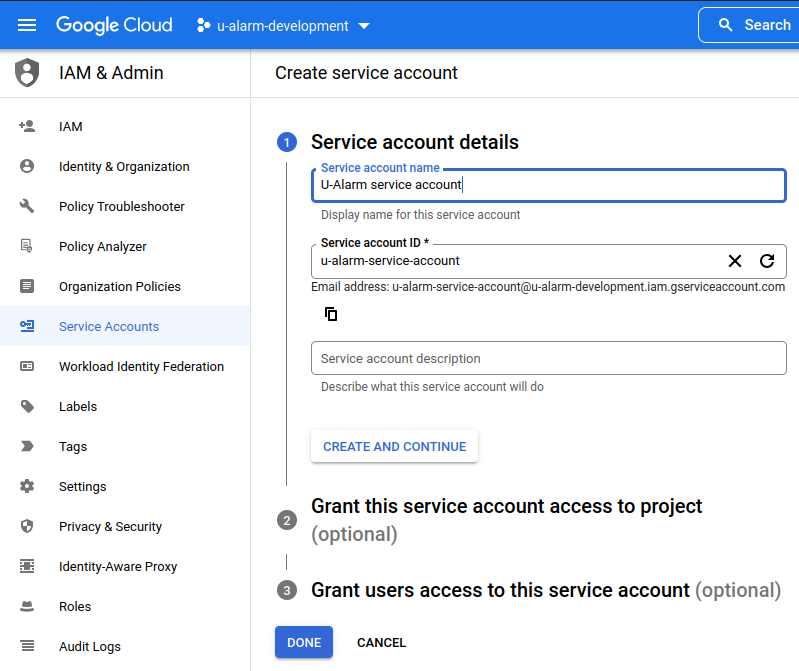

  1. Fill in the Service account name field: e.g. "IRIS+ Essential Service Account".

  1. You may leave the Service Account ID as default (auto generated).

  2. Click the Create and Continue button.

  3. The credentials are added to your Service Accounts list. Click on the new list item.

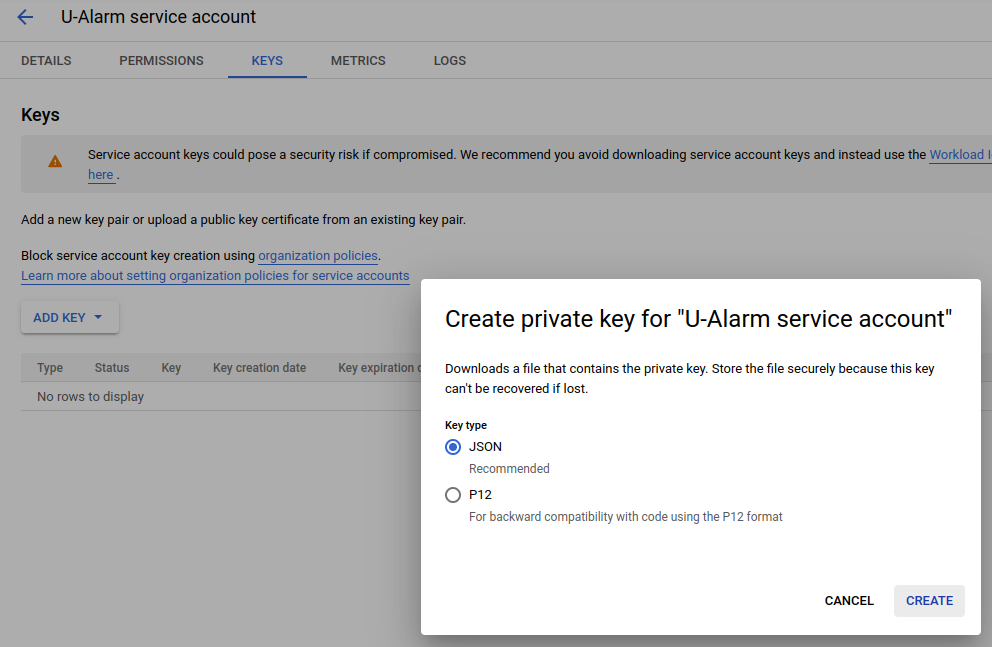

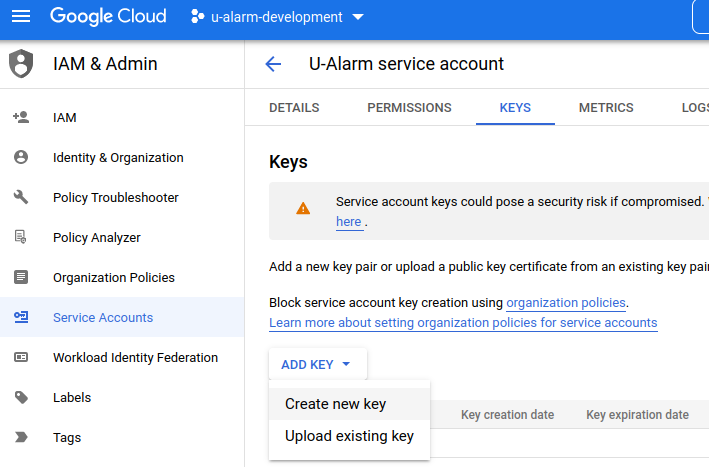

  1. Click the KEYS tab.

  1. Click Add Key Create new key.

  2. Select .json format.

  3. Click the Create button.

  4. Download the .json file.

Make sure you don't lose this file as it cannot be obtained again without creating new credentials.

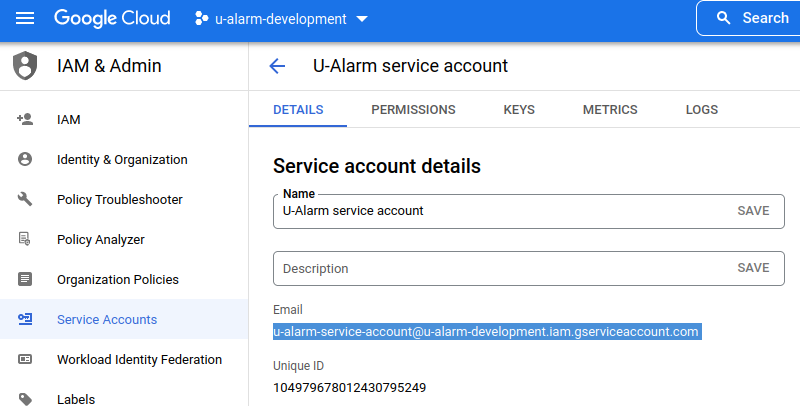

  1. Click the DETAILS tab.

  2. Copy the text in the Email section.

Create a BigQuery dataset

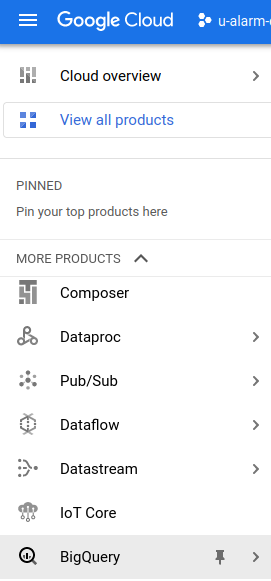

  1. Go to the hamburger menu on the upper left corner of the screen Click BigQuery.

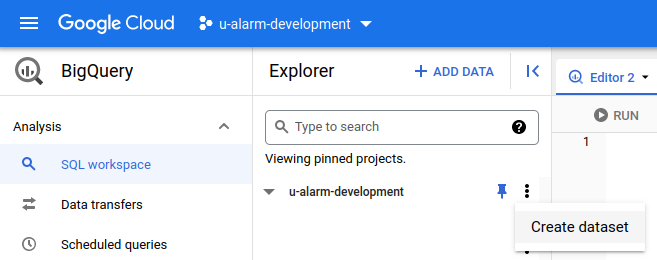

  1. Find your project and click the ... button next to it Click Create Dataset.

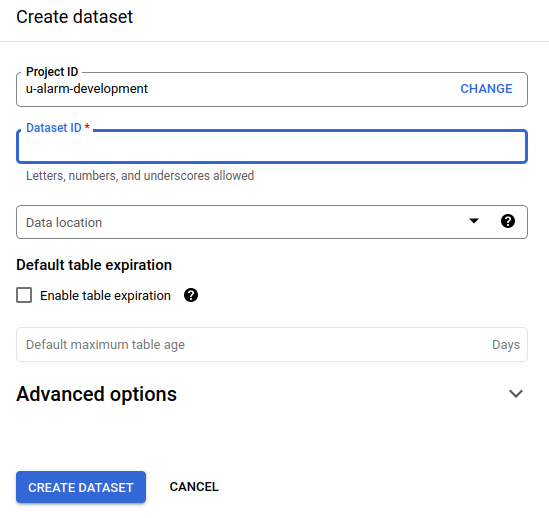

  1. Add a new ID. and click the Create Dataset button.

Connect your Service Account with the new dataset

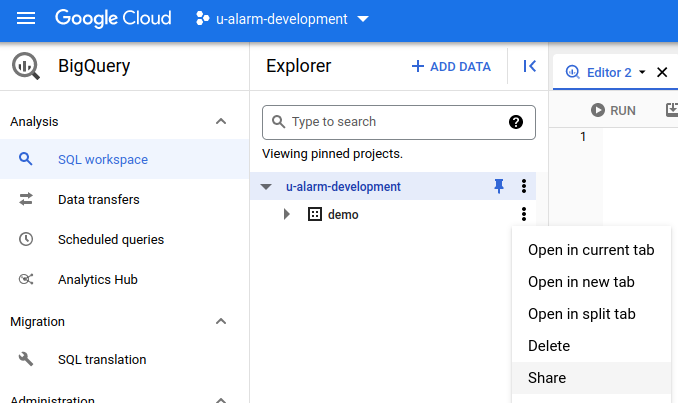

  1. Find your new dataset and Click ... button next to it Share

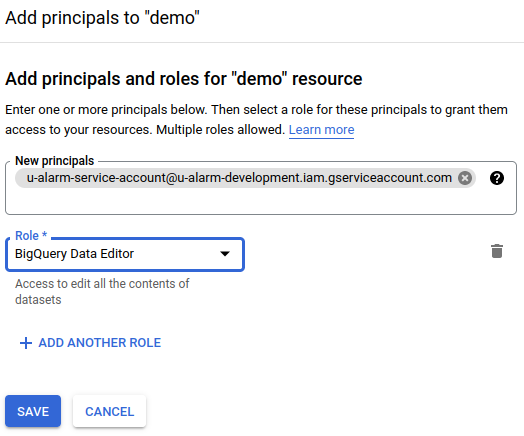

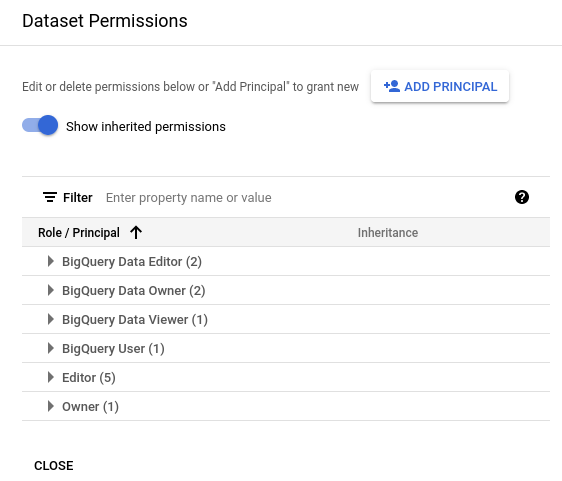

  1. In the Dataset Permission panel, click Add Principal.

  1. In the New principal field, paste the Service Account Email text you have copied in the Create Credentials section's steps.

  1. Set the Role to BigQuery Data Editor.

  2. Click SAVE.

Connect IRIS+ Essential with your Google BigQuery dataset

Add your credentials to IRIS+ Essential

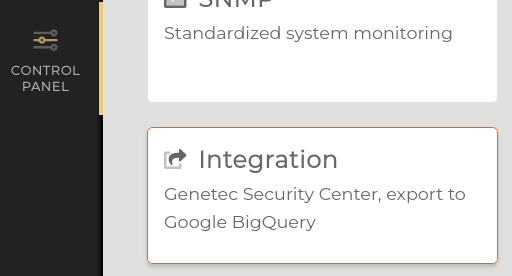

  1. Go To Control Panel Integration.

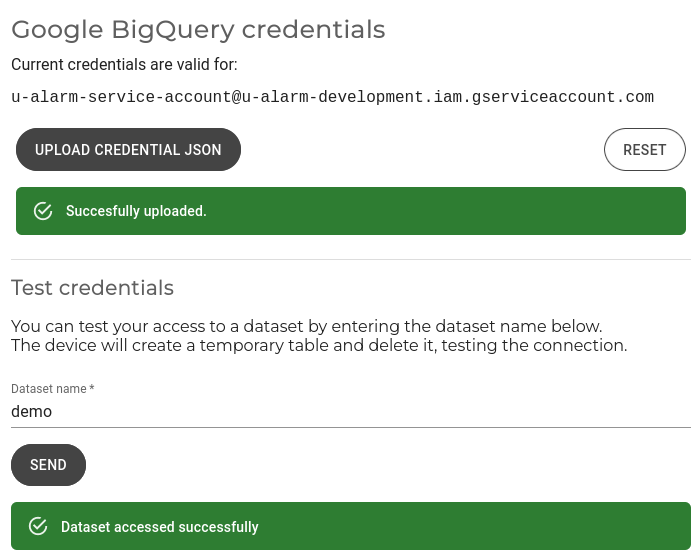

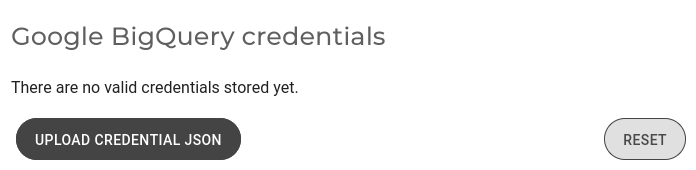

  1. Scroll down to the Google BigQuery Credentials section, then upload the .json file you have downloaded in the Create Credentials step.

  1. Once it's successfully uploaded you can test if everything is set up correctly: To do so, type your dataset name in the Test Credentials section and click the button under it. If your settings are correct, a "Dataset accessed successfully" message will appear.

Enable BigQuery integration in your solution

  1. Register a new solution in your Solutions menu.

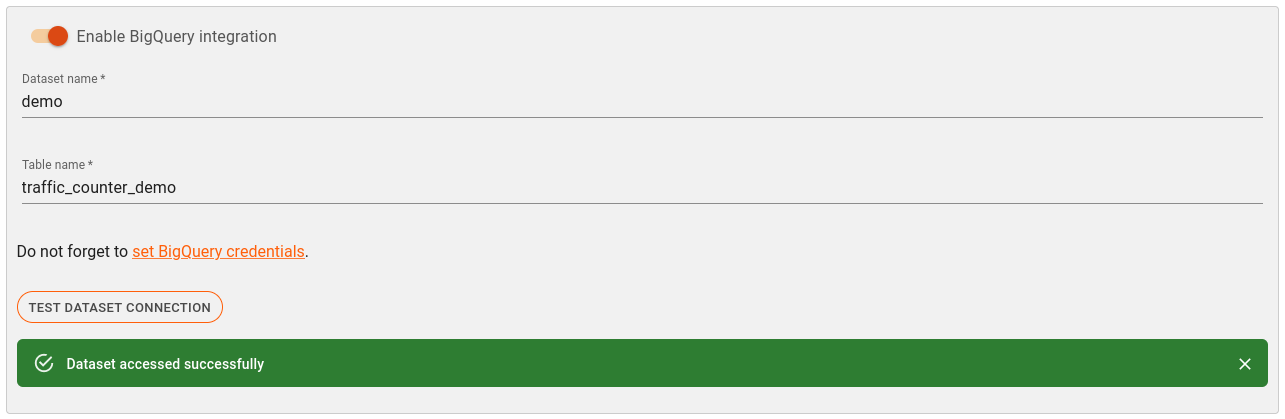

  2. In it configuration form, scroll down to Integration, then tick Google BigQuery.

  3. Type your dataset name.

  4. Add a table name. It will be created automatically if it does not exist yet.

Consider using the same table in which you would like to handle data from the same site.

  1. Optionally, enter a bucket name for snapshots. If enabled, snapshots of events will be stored in Google Cloud Storage bucket of the same name (needs to be created beforehand). The same bucket may be used for multiple solutions' snapshots.

Note that Metadata Output solutions do not have snapshot functionality.

Using the analytics data

Info

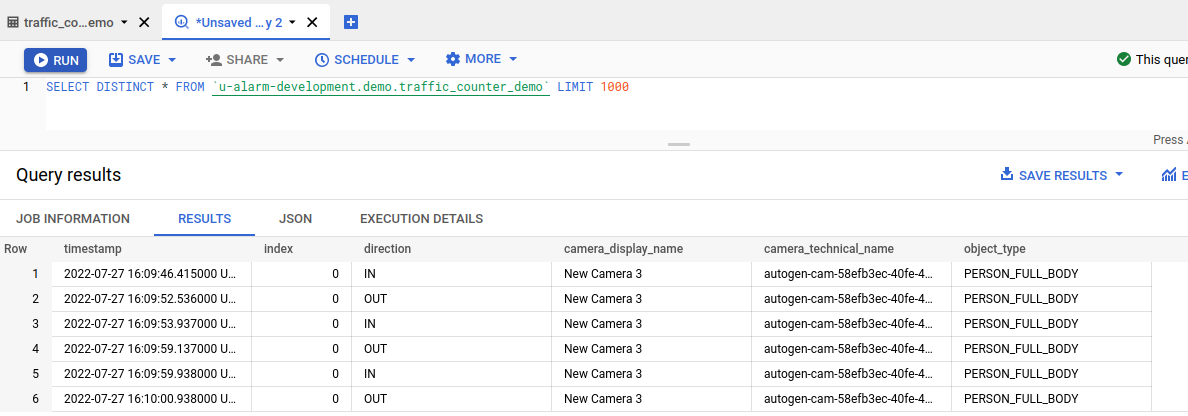

In extremely rare cases Google inserts a record multiple times. To filter duplicate records you can use SELECT DISTINCT * .... in your query.

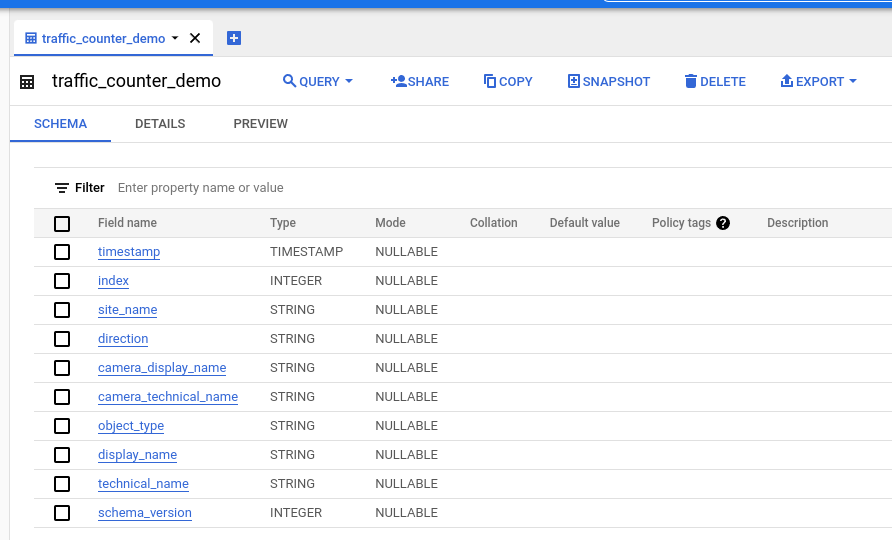

Traffic Counter data

Field Name Type Mode Info
timestamp TIMESTAMP NULLABLE The time of the line crossing.
index INTEGER NULLABLE Since multiple objects can cross lines at the same time, these occurrences are differentiated by this value.
direction STRING NULLABLE One of IN, OUT.
site_name STRING NULLABLE The Site name of the triggering camera set in the Cameras menu.
camera_display_name STRING NULLABLE The Display name of the triggering camera set in the Cameras menu.
camera_technical_name STRING NULLABLE The Technical name of the triggering camera set in the Cameras menu.
object_type STRING NULLABLE One of PERSON_FULL_BODY, CAR, BUS, TRUCK, MOTORCYCLE, BICYCLE, TRAIN, BOAT, AIRPLANE.
display_name STRING NULLABLE Human readable name of source Traffic Counter configuration
technical_name STRING NULLABLE Unique name of source Traffic Counter configuration
schema_version INTEGER NULLABLE Version number of the table schema associated with the record

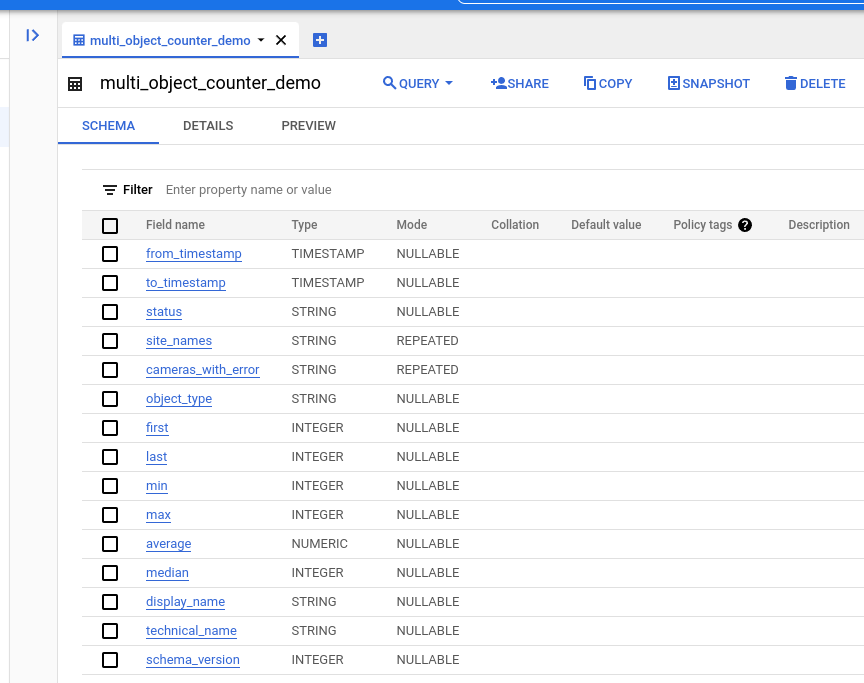

Multi Object Counter data

Field Name Type Mode Info
from_timestamp TIMESTAMP NULLABLE The starting timestamp of the aggregation interval (inclusive)
to_timestamp TIMESTAMP NULLABLE The end timestamp of the aggregation interval (exclusive)
status STRING NULLABLE One of OK, ERROR
site_names STRING REPEATED The list of Site names of the triggering cameras set in the Cameras menu.
cameras_with_error STRING REPEATED The Technical names of the cameras in error state during the aggregation interval
object_type STRING NULLABLE One of PERSON_FULL_BODY, CAR, BUS, TRUCK, MOTORCYCLE, BICYCLE, TRAIN, BOAT, AIRPLANE.
first INTEGER NULLABLE The number of objects in the first record of the aggregation.
last INTEGER NULLABLE The number of objects in the last record of the aggregation.
min INTEGER NULLABLE The minimum number of objects in the aggregation.
max INTEGER NULLABLE The maximum number of objects in the aggregation.
average NUMBER NULLABLE The average number of objects in the aggregation.
median INTEGER NULLABLE The average number of objects in the aggregation.
display_name STRING NULLABLE Human readable name of source Multi Object Counter configuration
technical_name STRING NULLABLE Unique name of source Multi Object Counter configuration
schema_version INTEGER NULLABLE Version number of the table schema associated with the record

Metadata Output data

Field Name Type Mode Info
frame_timestamp TIMESTAMP NULLABLE The time of the video frame.
index INTEGER NULLABLE Since multiple objects can appear on the same frame, these occurrences are differentiated by this value.
technical_name STRING NULLABLE Unique name of the source Metadata Output configuration.
camera_display_name STRING NULLABLE The Display name of the triggering camera set in the Cameras menu.
camera_technical_name STRING NULLABLE The Technical name of the triggering camera set in the Cameras menu.
camera_site_name STRING NULLABLE The Site name of the triggering camera set in the Cameras menu.
geo_coordinate_latitude NUMERIC NULLABLE The latitude of the GPS coordinates set in the Cameras menu, in decimal format.
geo_coordinate_longitude NUMERIC NULLABLE The longitude of the GPS coordinates set in the Cameras menu, in decimal format.
type STRING NULLABLE One of PERSON_FULL_BODY, CAR, BUS, TRUCK, MOTORCYCLE, BICYCLE, TRAIN, BOAT, AIRPLANE.
x INTEGER NULLABLE X coordinate of the top left point of the bounding box.
y INTEGER NULLABLE Y coordinate of the top left point of the bounding box.
width INTEGER NULLABLE Width of the bounding box.
height INTEGER NULLABLE Height of the bounding box.
detection_confidence NUMERIC NULLABLE Detection confidence in (0, 1]
track_id STRING NULLABLE Track ID of the detection.
predicted BOOLEAN NULLABLE True if the detection is based on tracking-based prediction.
end_of_track BOOLEAN NULLABLE True if the record indicates end of a track.
resolution_width INTEGER NULLABLE Width of the frame.
resolution_height INTEGER NULLABLE Height of the frame.

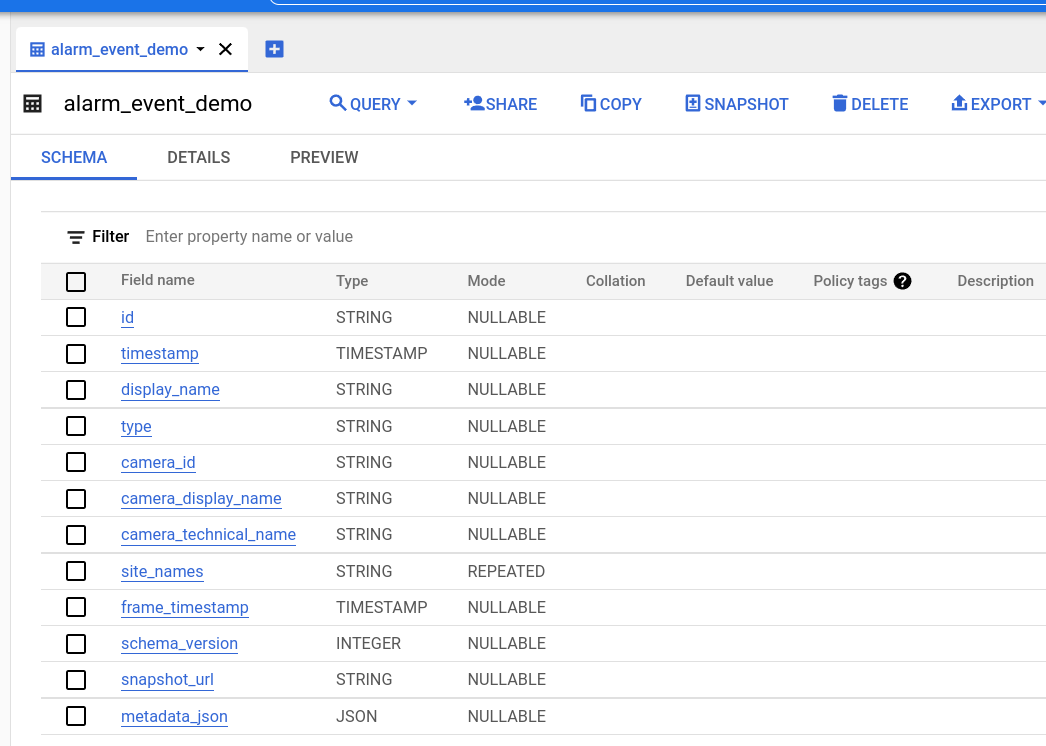

Event data

Field Name Type Mode Info
id STRING NULLABLE The unique ID of the event record.
timestamp TIMESTAMP NULLABLE The time of the event.
display_name STRING NULLABLE Human readable name of source Alert configuration.
type STRING NULLABLE The type of the Alert. One Of CROWD_DETECTION, INTRUSION_DETECTION, MULTI_OBJECT_DETECTION, COUNTER, ZONE_CROSSING, LOITERING_DETECTION, STOPPED_DETECTION, WRONG_DIRECTION_DETECTION, PPE_DETECTION.
camera_id STRING NULLABLE The ID of the triggering camera.
camera_display_name STRING NULLABLE The Display name of the triggering camera set in the Cameras menu.
camera_technical_name STRING NULLABLE The Technical name of the triggering camera set in the Cameras menu.
site_names STRING REPEATED The list of Site name of the triggering cameras set in the Cameras menu.
frame_timestamp TIMESTAMP NULLABLE The time of the triggering video frame.
schema_version INTEGER NULLABLE Version number of the table schema associated with the record.
snapshot_url STRING NULLABLE Google Storage URL referring to the snapshot attached to the event, in the following format: gs://bucket_name/object_name
metadata_json JSON NULLABLE Metadata of the event.*

*See the relevant part of the integration guide for detailed description of the Event schema.
